Location：首頁>>Product>>Coarse screen cleaner

Product line

National Service Hotline

0512-65657076

Three phase centrifuge with special coarse screen machine

National Sales Hotline

0512-65657076

Product details

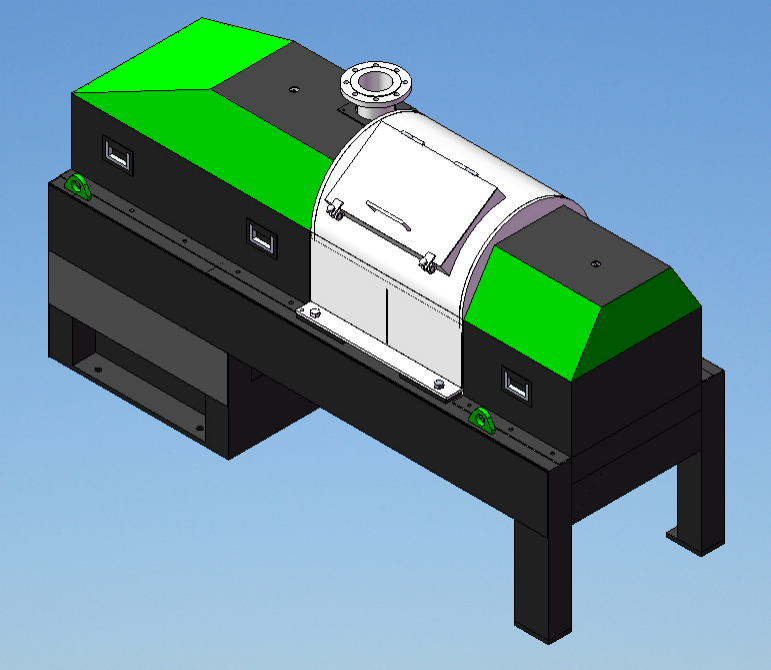

Roughing machine

Add：100 Xingnan Road, Wuzhong District, Suzhou City, Jiangsu Province          Postcode：215168
Tel：0512－65657075  65657076               Fax：0512－65656443
Http：//www.cqxwzs.com.cn                      E-mail：info@szunited.com
Roughing machine Roughing machine is a kind of automatic and continuous operation filter specially developed by our company for the pretreatment of waste oil.

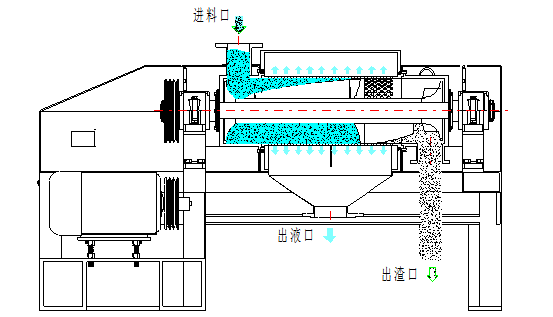

○ After the slurry enters the trash remover, the mixed liquid of water and oil and fine solid impurities flow into the liquid collection hopper through the filter screen, and the large solid impurities are trapped on the filter screen to form a filter cake layer, which is discharged from the cylinder and enters the solid impurity collection hopper under the push of the spiral blade. Feeding, separation, liquid discharge and discharge are completed automatically and continuously.
○ The coarse screen machine is mainly used to remove large impurities in waste oil. Such as: chopsticks, bottle caps, rags, large pieces of glass, plastic products and other debris can be effectively removed. Due to the removal of large impurities, the load of the oil-water separator in the next process is greatly reduced, the processing capacity, separation effect and the wear resistance of the blade of the separator are improved. It has the advantages of continuous, airtight, automatic, large capacity and anti blocking.
Product specifications

Type number Type	Screw speed Maxspeed r/min	Capacity m³/h	Power kW	Weight kg	Dimensions （long×width×height） Dimension mm	Examples of uses
JY320	1200	8.0－15.0	15	800	2200×770×1300	Kitchen residues, waste oil
JY400	1200	15.0－25.0	22	900	2980×750×1100	Kitchen residues, waste oil
Preparation notes	1.The material of the contact part between the coarse screen and the material is determined according to the use requirements, and the structure can be specially designed and manufactured according to the special requirements of users 2. The processing capacity of the mixed liquid of the coarse screen depends on the specific separated material. The data provided in this table is for reference only
